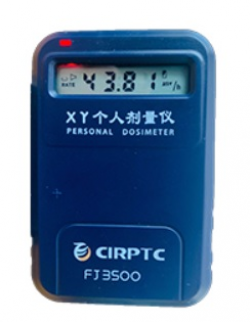

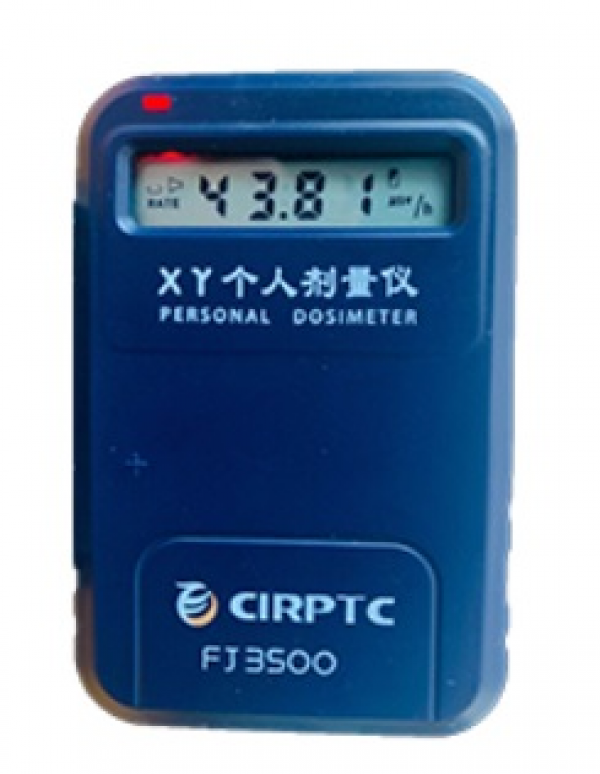

FJ3500 Personal Radiation Dosimeter
Product Code : FJ3500
Product Name : FJ3500 Personal Radiation Dosimeter

Details :
FJ3500  Personal Radiation Dosimeter

◆Detector: GM counter (compensated)
◆Measuring range: Cumulative dose equivalent: Hp (10) 0.0 μSv-9999 mSv Dose equivalent rate: Hp( 10) 0.1 μSv/h-10 mSv/h
◆Relative error: < ±15% (1"Cs) (10 μSv/h- 10 mSv/h)
◆Energy response: 50 keV-1 .3 MeV, the error is within ±30%
◆Angle response: Reference "Cs does not exceed the calibration direction when 0° -90 Response soil 30%
◆Alarm function: the alarm threshold can be set continuously, when it is greater than the set alarm threshold Sound and  light alarm, continuous alarm when the counting tube is blocked, the sound intensity of the alarm is greater than 80 dB at  30 cm
◆Power consumption: one AAA 1.5 V alkaline battery (No. 7 battery) environmental background Under continuous use for 72 hours, power consumption < 3 mW
◆Dimensions: 50(width) x 72(length) x 14(thickness)
◆Weight: 60 g
