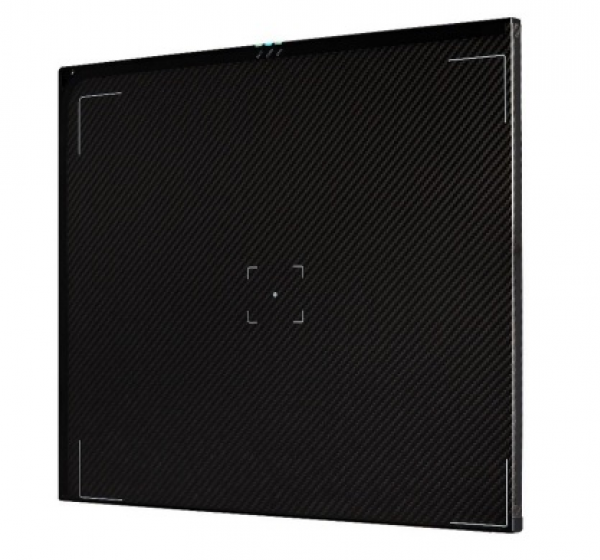

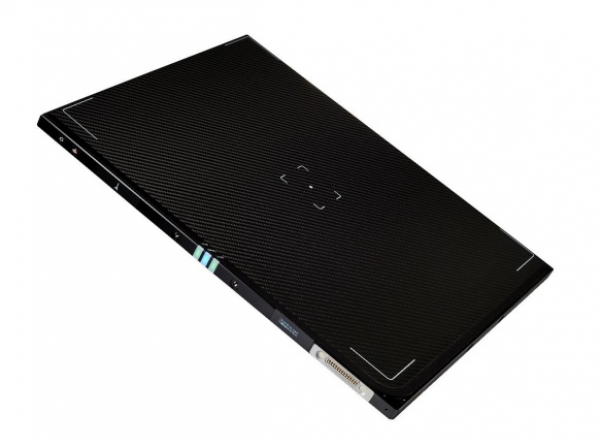

duraSCAN1417
Product Code : DR1417
Product Name : duraSCAN1417

Details :

Specification  :

Imaging Sensor Type   :   duoPIXTM(TFT based Quasi Active Pixel Sensor)

Conversion Screen     :   Gd2O2S:Tb

Pixel Active Area     :   4096 x 3300 (13.5 pixels)

Pixel Pitch     :   105 μm(Fill the Max)

Active Area Size     :   430mm x 347mm

Dimension     :   460mm x 378mm x 15mm

Weight     :   3.7kg

Energy Range    :   40 ~330 kVp

A/D Conversion    :   16bits

Battery    :   Built-inLi-ion polymer battery (14,500mAh capacity) 8 hours (over 460 X-ray                                                       images@ every 1min shot interval)

Image Storage      :   1,000images

Housing Material   :   Semimonocoque CFRP with aluminum frame

Dead Space    :    5mmon bottom & right edges

Handle     :    Detachablehandle; portrait and landscape (2 sides)

Ingress Protection Code :  IP67

Temperature (Operating)   :   -20 ~ 55

Humidity (Operating)   :   10~ 100% RH

Drop Tested  :   1 meter drop resistance

Weight on panel   :  Point150 kgf @ ɸ 40, Whole 300 kgf
