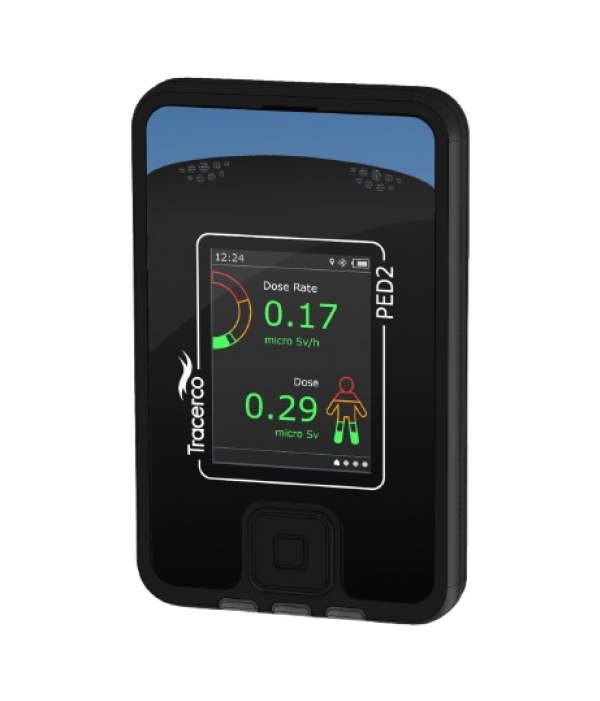

Personal Dosimeter Gen 2 (PED2)
Product Name : Personal Dosimeter Gen 2 (PED2)
Details :
Details: Tracerco™Personal Electronic Dosimeter Gen 2 X-ray and gamma ray measurement.
PED family specification:
- Radiation:detected: X-rays and gamma rays in range 33 keV to 3 MeV.
- Detector: Geiger Muller tube with rapid response technology for increased range and high sensitivity.
- Doserate range: Bar graph display 0-100 mSv/h. Extended rangdisplay 0-1Sv/h.
- Accumulated dose range: Dose “Man”display 0µSv - 42Sv (0mrem - 4200 rem) dose increments of 0.01µSv (0.001mrem).
- Battery options: 2 x AAA 1.2V NiMH rechargeable cells or 2 x AAA 1.5V Alkaline disposable cells.
- Memory: 250,000 data point capacity. 10 year data retention. Survey mode more than 1 year continuous area monitoring logging every 2 seconds.
- Units: Sieverts or Rem (may be selected in Dose VisionTM software).
- Operating temperature range: -20°C to 50°C .
- Ingress protection rating: IP67 (dust tight and immersion in water at depth of 1m).
- Hazardous area certification (PED2-IS, PED2-IS+only): ATEX and IECEx: Zone 0, 1, 2 gas group IIA, IIB, IIC.
- Humidity: Up to 95%.
- Case material: Shock,vibration and drop resistant polymers with antistatic properties. Front replaceable protective membrane (anti-tamper).
- Standard compliance: BS EN61526:2013; IEC 61526:2010; ANSI42.20:2003; EN55011; IEC60079-0; IEC60079-11;IEC61010-1.
Applications:
- Emergency responders and security services.
- Offshore and on shore oil and gas.
- Industrial radiography.
- Border control and military (CBRNe).
- Nuclear and decommissioning.
- Medical and life sciences.
- Mining.
