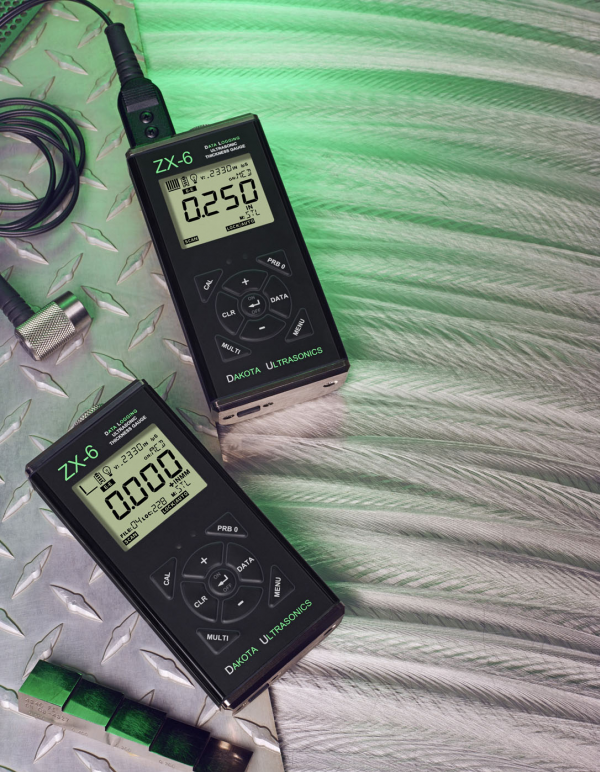

ZX-6 ULTRASONIC Thickness Gauge
Product Code : 06
Product Name : ZX-6 ULTRASONIC Thickness Gauge

Details :

ZX-6 Series Multi-Echo


Specification :


  • Powered by: 120MHz FPGA timing.
  • 150 volt square wave pulser.
  • Pulse-Echo (flaw) & Echo-Echo (thru-paint) measurement modes.
  • Adjustable gain (40-52dB), in 3dB steps (vlow, low, med, high, vhi).
  • Time dependent gain (TDG).
  • Selectable manual or auto zero.
  • Dual element transducers (1-10 MHz options).
  • Low temperature custom LCD display (-22 F / -30C).
  • USB-C connectivity.
  • CDC compatible serial over USB. Optional serial RS232 or bluetooth module (ZX-6).
  • Data Storage: 32 megabit flash memory (ZX-6 DL).
  • IP65 protection rating.
