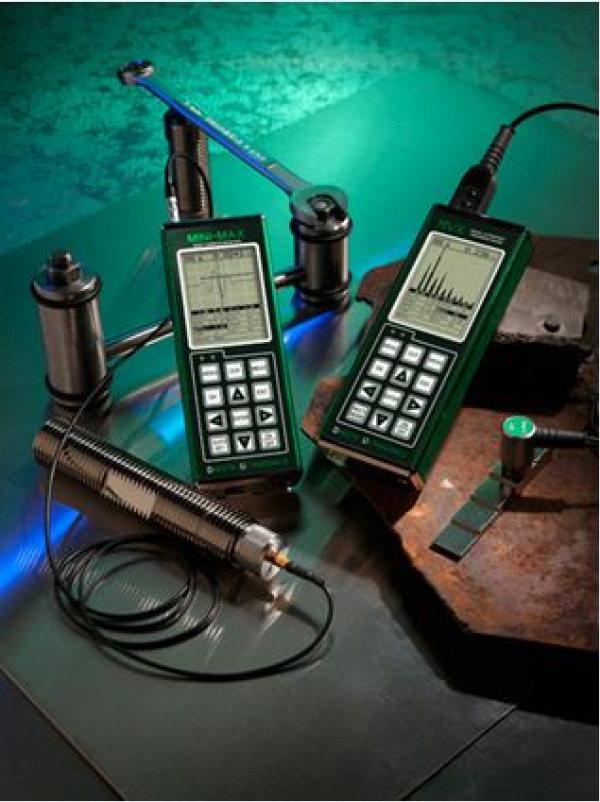

A/B Scan Thickness Gauge MVX
Product Code : 08
Product Name : A/B Scan Thickness Gauge MVX

Details :

PHYSICAL

Weight: 13.5 ounces (withbatteries).

Size: 2.5 W x 6.5 H x 1.24 Dinches (63.5 W x 165 H x 31.5 D mm).

Operating Temperature: -14° to140°F (-10° to 60°C).

Keyboard: Membrane switch withtwelve tactile keys.

Case: Extruded aluminum bodywith nickel-plated aluminum end caps (gasket sealed).

Data Output: Bi-directionalRS232 serial port. Windows® PC interface software.

Display: 1/8 in. VGA grayscaledisplay (240 x 160 pixels). Viewable area 2.4 x 1.8 in. (62 x 45.7mm).

EL backlit (on/off/auto).



ULTRASONICSPECIFICATIONS

Measurement Modes: Pulse-Echo(flaws, pits)

Echo-Echo (thru-paint)

Pulser: Square wave pulserwith adjustable pulse width (spike, thin, wide).

Receiver:Manual or AGC gain control with 40dB range, depending
