Product Name : Spot Check
Details :

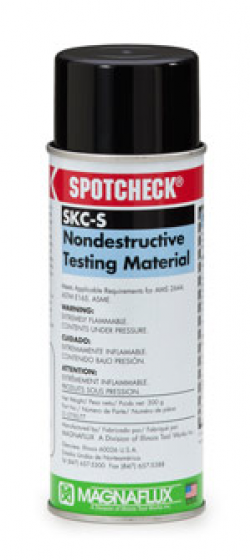

1. Spotcheck® SKC-S
Specifications Compliance:
AMS-2644; MIL-STD-271; MIL-STD-2132; AECL; ASTM E 165; ASTM E 1417; ASME B&PV Code, Section V; NAVSEA 250-1500-1; Boeing BAC 5423 PSD 6-46 or 8-4; General Electric P50YP107; Boeing PS-21202, ISO 3452
Part Number and Container Size:
- 01-5750-35: 1 gallon (case of 4)
- 01-5750-40: 5 gallon pail
- 01-5750-45: 55 gallon drum
- Available in 16 oz. aerosol cans
Applications: SKC-S is used to remove excess surface penetrant from the inspection area prior to applying developer.
Classification: Class 2
Temperature: 40°F to 125°F

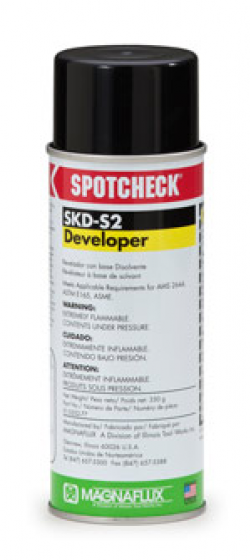

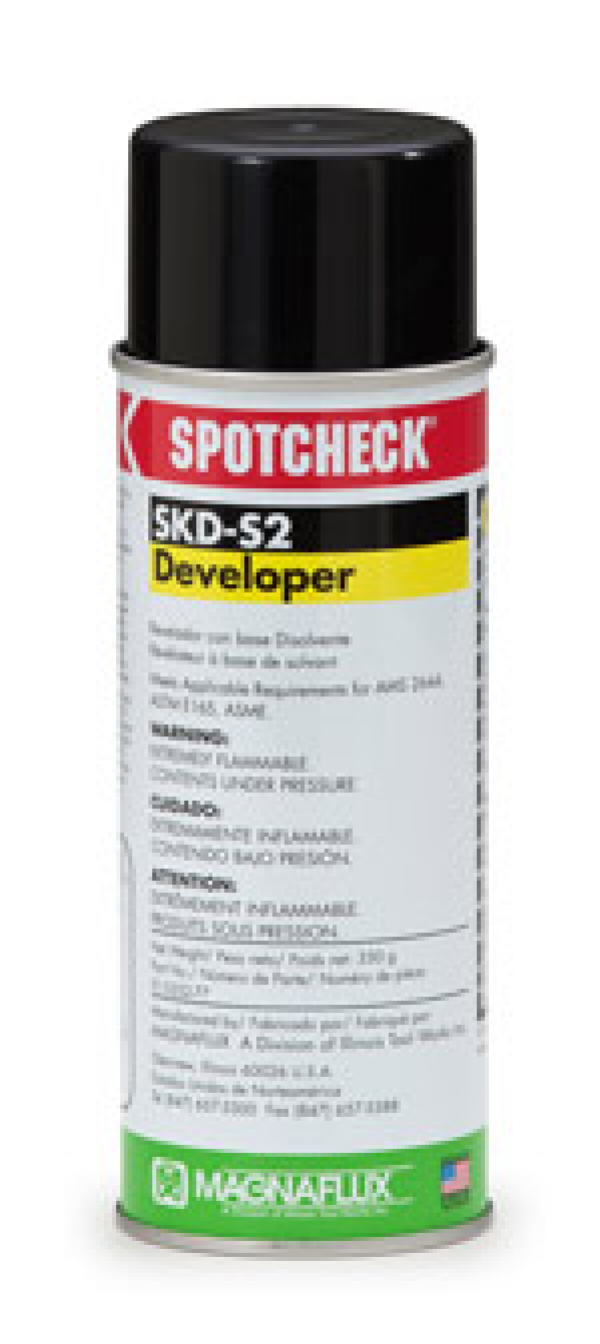

2. Spotcheck® SKD-S2 Non-Halogenated Solvent Developer
Specifications Compliance:
AMS 2644, MIL-STD-271, MIL-STD-2132, AECL, ASME B & PV Code, Section V, Boeing PS-21202, AMS 2647, ASTM E1417, ASTM E165, NAVSEA 250-1500-1, Boeing BAC 5423, PSD 6-46 or 8-4, GE P50YP107, ISO 3452
Part Number and Container Size:
- 01-5352-35: 1 gallon (case of 4)
- 01-5352-40: 5 gallon pail
- 01-5352-45: 55 gallon drum
- Also available in 16 oz. aerosol cans
Applications: Developer for Liquid Penetrant Inspection process.
Classification: Form d Non-aqueous Type 1 Fluorescent (solvent based). Form e Non-aqueous Type 2 Visible Dye (solvent based).

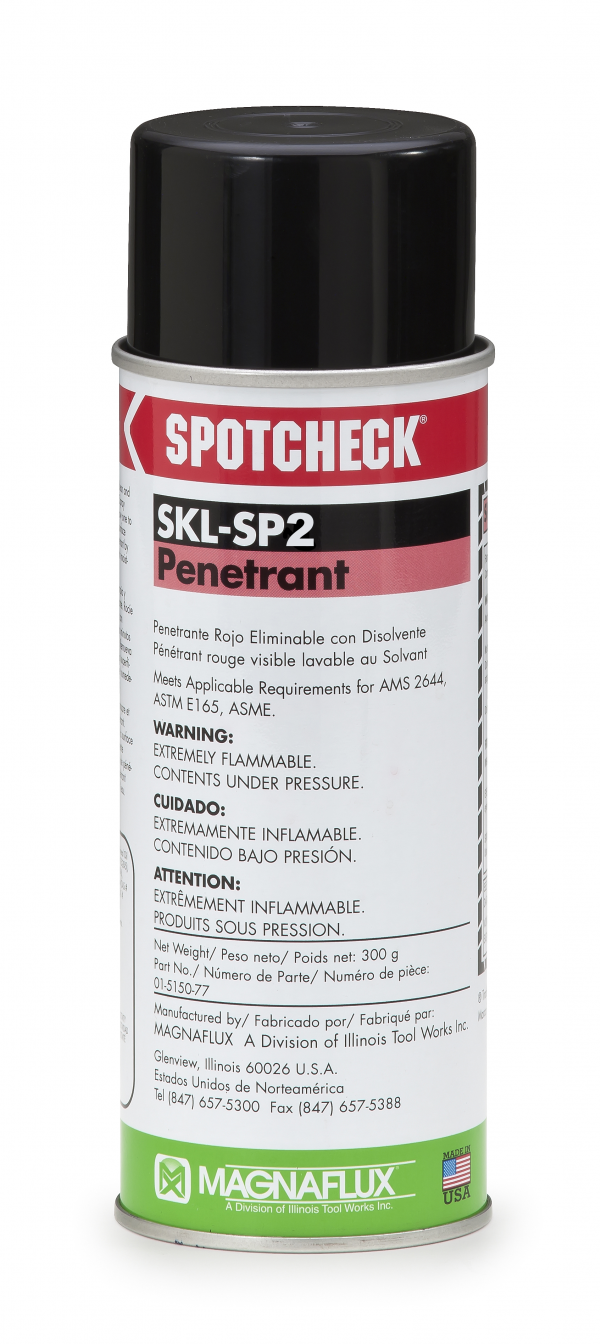

3. Spotcheck® SKL-SP2 Solvent Removable Penetrant
Specifications Compliance:
AMS-2644, AECL, ASME B & PV Code Sec V, ASTM E1417, MIL-STD 2132, ASTM E165, MIL-STD-271, ISO 3452
Part Number and Container Size:
- 01-5155-35: 1 gallon (case of 4)
- 01-5155-40: 5 gallon pail
- 01-5155-45: 55 gallon drum
Available in 16 oz. aerosol cans
