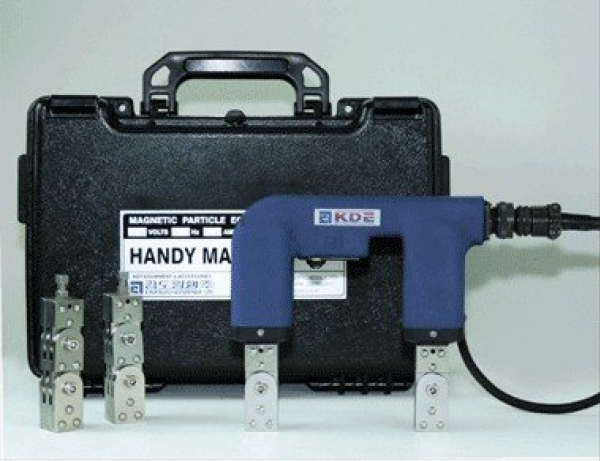

Magnetic Yoke MP-A2L
Product Code : 04
Product Name : Magnetic Yoke MP-A2L

Details :
MP-A2L

Specifications :


Power Supply    : AC 220 V 50/60 Hz,  AC 110 V 50/60 Hz

Related Current : 2.8 amps / 4.8 amps


Distance Between Magnetic Core Center :


  • Center pole distance                   130 mm.

  • Minimum pole distance                 80 mm.

  • Maximum pole distance              175 mm.


Lifting Power : 5.44 kg over


Magneto motive force : 4,380 (A/T)


Magnetizing Current : AC only


Power Cable Length : 4 m (1.5 sq x 3 p)


Weight : 3.2 kg (including pole) 2.2 kg (Pole 0.5 x 2 = 1) = 3.2 kg


Dimensions : 194(L) x 186(H) x 48(W)mm


Duty Cycle : 1 min ON, 1 min OFF
