Material & Coating Thickness Gauges CMX
Product Code : 09
Product Name : Material & Coating Thickness Gauges CMX

Details :

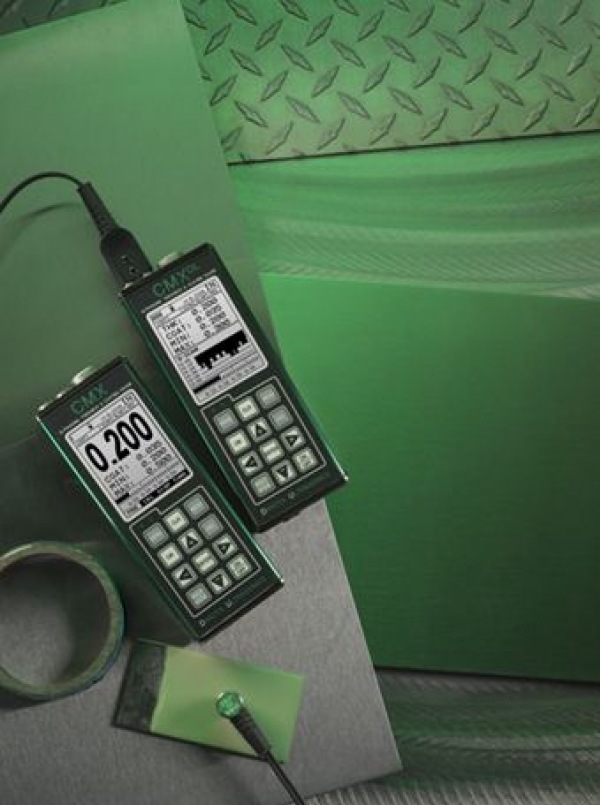

The CMX has all features of the MX & MMX gauges with a ton of advanced features.Measure material and coating thickness simultaneously, while still detectingpits & flaws in a single mode (PECT). Auto probe zero, auto proberecognition, auto temperature compensation are also included. Selectable Large Digits and B-Scan display options, up to 64 custom user definable setups,selectable transducer table for precision linearity, and material and coating calibration options are also available.

Our standard thru paint mode is is still included and ongoing. Switch between modes, according the transducer recognized or manually selected. 5 position 10 dB gain switch allows the user to adjust to certain material types and be successful with common but difficult application scenarios. This gauge is really loaded with a ton of features and added benefits. It’s all very nicely packaged in a very small portable aluminum extrusion for extra durability. Our DakViewJava based PC software is also included, making the kit more than complete.








Brochure :
